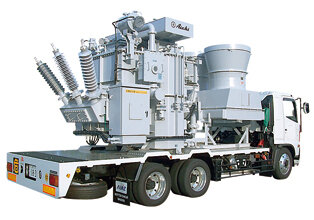

Mobile Transformer
Movable transformers for temporary use during repairs, etc., of on-load tap-switching transformers (LRTs) installed in 77 kV substations.
Feature
Lightweight and compact design allows loading on 20-ton trucks that do not require special vehicle passage procedures.
Specifications and Ratings
| Primary voltage（kV） | 77 |
|---|---|
| Secondary voltage（kV） | 33/6.6 |
| Tap points | 13～21 |
| Capacity(kVA) | 10000､15000 |
